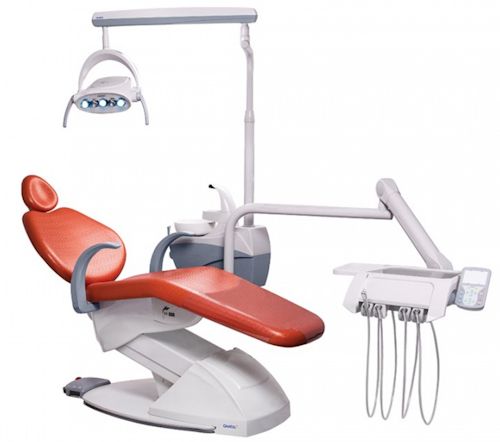

Dental Set Gnatus G3 New F



Syncrus G3 Dental Chair

Inspired by technology concepts and biosafety, Gnatus G3 New line sets developed for clinical routine. With a new design, their movements make the task of dentists as well as the wizard, simple and practical, time after time. Intuitive, with ergonomics and biosafety.

  • Biarticulated headrest lock system
  • Easy fix system
  • 1 fixed and 1 folding arm with internal steel structures
  • Integrated box
  • Antiskid edging
  • No need to fix on the floor
  • Wide upholstery with 22 colors options
  • Multifunctional and reversible control pedal with 4 work positions; spitting position and automatic return to zero position
  • Movements blocking system.



Syncrus G3 Delivery Unit

  • Delivery unit with pneumatic arm
  • Delivery unit for ambidextrous dental use
  • Flexible, removable and autoclavable handpiece support, protecting them from impact
  • PAD control with a LED negatoscope
  • Pneumatic lock activation
  • Allows up to 5 working terminals (ST + terminals).
  • Suport tray
  • Available in the pneumatic FLEX, mechanical FLEX and CART models (optional)
  • Bio System



Syncrus G3 Alcance 2T Water Unit

  • Extended Alcance Arm (Optional)
  • Water unit with proximity sensor and cup holder
  • Removable bowls with dimension around 220mm diameter round, and purpose perfect disinfections
  • With movement of 90th, prioritizing the ergonomics and making possible the assistant’s approach in a better way
  • Water flow adjustment system, which allows cup filling and bowl flush adjustment



Sirius Sensor 3 LEDs Dental Lights

  • Proximity sensor
  • Rectangular light focus
  • Removable and autoclavable handles
  • Adjustable light intensity (30, 20 and 10 thousand lux).



Different models (Optional)

  • 5 LEDs - light intensity at 35, 25 and 15 000 Lux
  • 3x2 LEDs - light intensity at 35, 25 and 15 000 Lux and orange LED 5000 Lux.
  • Persus L – halogen illumination system.





   Technical Specifications



   Product Rating:
   According to norm NBR IEC 60601-1
   Voltage:
   127/220 V~ Selectable
   Frequency:
   50/60 Hz
   Type of protection against electric shock:
   Class I equipment
   Degree of protection against electric shock:
   Type B Applied Part
   Water leak protection:
   IPX0 – Every chair for exams, except for footswitch
   IPX1 – Pedal command
   Input power:
   200VA
   Protection fuses:
   F1 and F2 (127 or 220V ~) = 5A - delayed action
   Lifting capacity:
   200 kg distributed load (weight of the patient and equipment + accessories)
   Capacity maximum of applied load trays of intravenous sets:
   Syncrus line H - 1kgf / Syncrus line F - 2Kgf
